Description

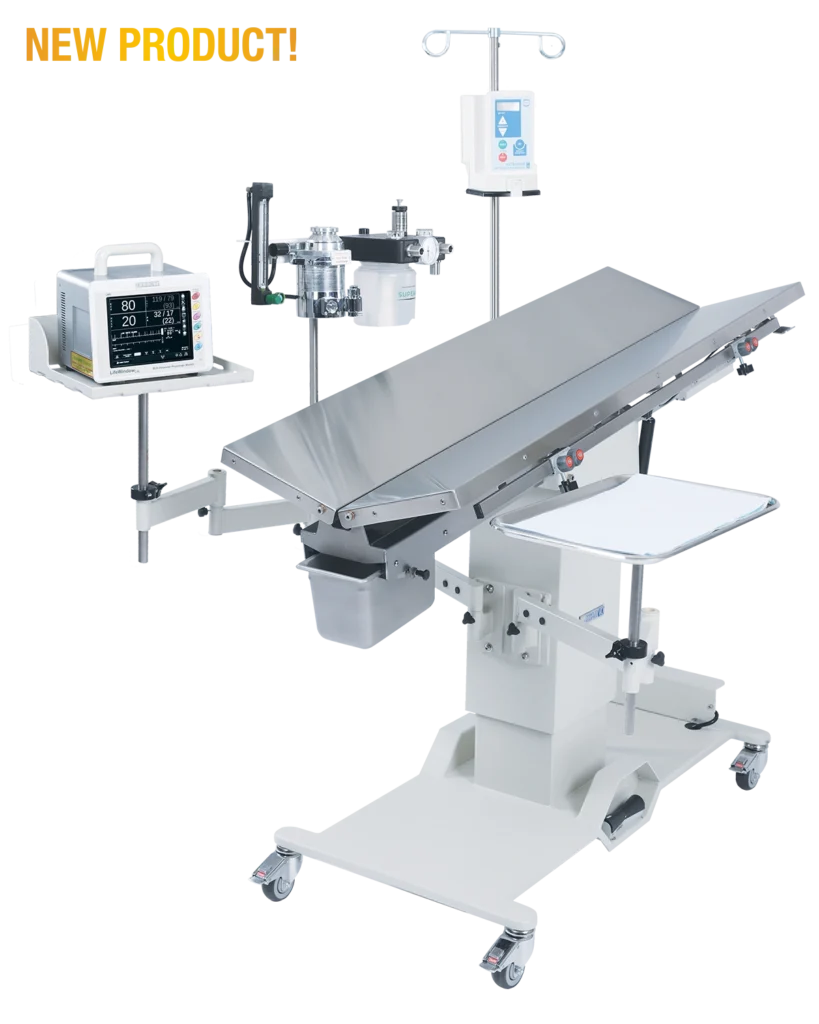

The Complete Surgical Table for Soft Tissue Procedures
Ergonomic – Easy-Clean™ Design – Floating Swing Arms
Fully Customizable in Just Seconds for Each Procedure
The key to improving efficiency and preventing repetitive strain injuries is positioning everything you need at your fingertips, so that you are never reaching awkwardly for controls or supplies. Only Olympic Surgical Tables feature floating swing arms that allow you to position one or more instrument trays, an IV pole, patient monitor, anesthesia unit and laptop in the precise locations that best fit your reach, minimizing strain on your arms, shoulders, neck and back.
Your Operatory Moves Up and Down as a Single Unit
You can now move from seated to standing with ease, either for ergonomic comfort or better patient visualization. The Precision Surgical Table is built to hold up to 4 accessories. The Advanced and Ultimate Surgical Tables hold up to 8 accessories.
Easier Than Ever to Achieve a Deep Clean After Each Use
Olympic’s Patented Easy-Clean™ fluid collection system eliminates the need to transport any removable parts to a sink for cleaning. Now you have a completely visible integrated fluid tray that you can wipe down in seconds to achieve a high level of disinfection. And those fluids that tend to pool up around your foot switches are also a thing of the past with our integrated foot switch covers.
At Last…A Safe and Reliable, Built-In Warming Solution
Olympic’s Thermo-Safe™ Warming System provides controlled warming and a clear visual display for optimal patient comfort and thermoregulation. Unlike other warming systems that rely on a single temperature sensor, the Olympic warming system continuously monitors 6 locations on the tabletop surface to help ensure a patient’s safety and comfort at all times.

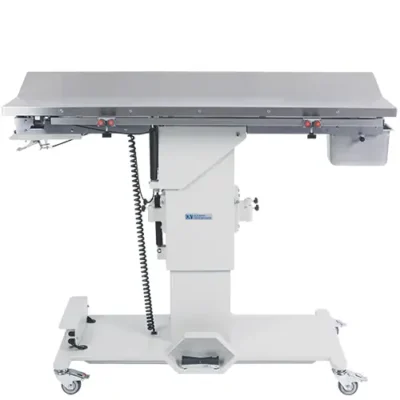

Comfortable Height Range
Adjusts from a comfortable 32″ to a tall 44″.

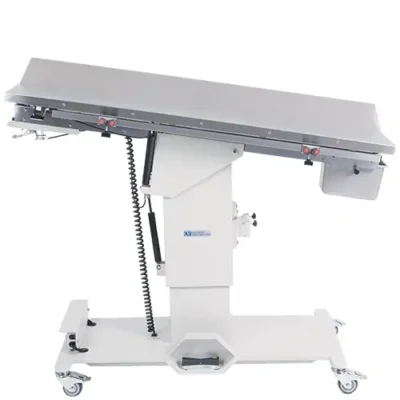

Lateral Forward Tilt
15° of Lateral Forward Tilt (Trendelenburg) adjustment. V-Top panels independently adjust 45°.
Additional Features
Olympic Easy-Clean™ Design
All surfaces are clearly visible and easy to reach. Foot switches are shielded from splatter with protective covers. No more caster stands cluttering the surgical suite.

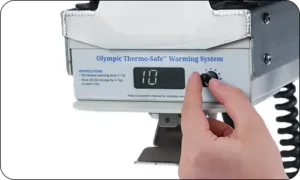

Thermo-Safe™ Warming System
Olympic’s Thermo-Safe™ warming system continuously monitors 6 locations on patient surface to ensure safety and comfort at all times. A dial control and clear display ensures easy adjustment.

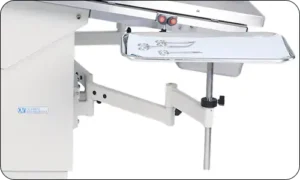

Pre-Installed Sockets
Just add Olympic swing arms and you can mount your preferred anesthesia unit, patient monitor, or other Olympic accessories.
2 Covered Foot Switches
One on each side. Smoothly adjusts the table height. Protective covers shield from splatter for easy cleaning.
On-Board Power Strip
All powered equipment can be plugged in. No more cords on the floor.

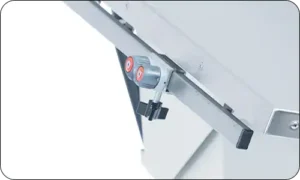

Adjustable Cam Cleats
Four cam cleats, two on each side of the tabletop. Adjustable, self-locking.
Ordering Options
- 52102 Olympic Precision Surgical Table – Base Unit with Thermo-Safe Warming System. Features two sockets for Olympic Quick-Connect accessories.
- 52101 Olympic Precision Surgical Table – Base Unit without Warming System. Features two sockets for Olympic Quick-Connect accessories.
Olympic Accessories
- 51081 IV Pole – holds fluid pump or monitor
- 50970 Olympic LED Exam Light
- 50971 Olympic Advanced LED Procedure Light
- 50972 Olympic SoloMax LED Procedure Light
- 50973 Olympic Hands-Free Magnifier with Integrated Wood’s Lamp
- 50988 Laptop Tray – height-adjustable, swivels, fits up to 15″ laptop
- 50990 Patient Monitor Tray – height-adjustable, swivels, fits most common monitors
- 51087 Standard Instrument Tray (13″ x 10″) – height-adjustable, swivels
- 51884 Large Instrument Tray (19″ x 13″) – height-adjustable, swivels
Swing Arms
- 51086 Olympic Standard Swing Arm with two ¾” sockets for Olympic Accessories
- 50996 Swing Arm Socket Doubler/Extender. 10” arm that adds 1 additional 3/4″ socket to a #51086 Standard Swing Arm
Adapters for common anesthesia units
- 50992 Olympic Adapter for Vetland VSA-2100-CP, Matrix VMS and Surgivet CDS 9000
- 50998 Olympic Adapter for Eagle Eye Millenium and Matrix VME
- 50999 Olympic Adapter for Vetamac Dream and Dream+
Note: Supera M2600, Versa-II and Versa-Compact anesthesia units come with built-in adapter.
Convenience Accessories
- 51882 Limb Holder
- 51883 Anesthesia Screen
Product Specifications
- Tabletop Dimensions: 57″ x 21″
- Height Range: 32″–44″
- Patient Weight Capacity: 250 lbs
- Electrical Lift: 120V/60Hz, draws 4.5 amps, plugs into standard 15 amp wall outlet.
- Power Strip: 5 outlets (unwarmed) or 4 outlets (warmed). 15 amp capacity.
- V-Top Panel Tilt: 0°–45°
- Table Tilt: 0°–30°
